LED浪涌保护器QR-SPD06A IP20系列10KV 15KV 20KV
LED浪涌保护器 CQC, TUV, CE
IP20等级防水
Uoc: 10KV 15KV 20KV
TUV认证(IEC61643-11)
CQC认证 (GB18802.1-2011)
CE认证
适用于Class I 灯具

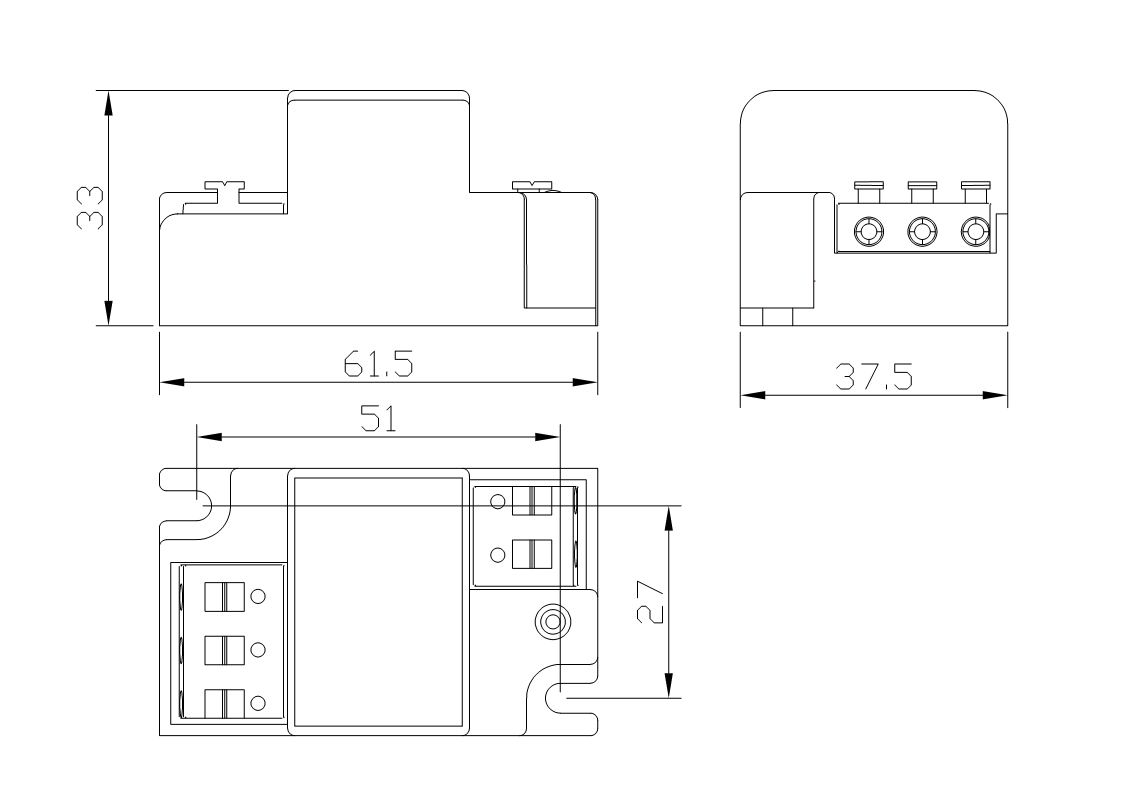

电性能参数 Electrical specifications
参数规格 Specifications |
参数代码 Parameter |
参数值 Value |
测试环境 Condition |
冲击类别 Classification |
|
Class III |
ACC.IEC61643-11 GB18802.1-2011 |
保护模式 Protection mode |
|
差模 Diff.mode 共模 Comm.Mode |
|
最大持续工作电压(L-N) Max.continuous operating voltage |
Uc (L-N) |
275VAC |
50-60 Hz |
暂时过电压 Temporary overvoltage TOV |
UT |
337V |
LV system fault : 255V×1.32 at tt=5s , TN |
暂时过电压 Temporary overvoltage TOV |
UT |
442V |
LV system fault : 255V×√3 at tt=120m , TN |
电网类型 Power grids |
|
TN |
ncl.all TN varieties TN-C, TN-C-S, TN-S |
标称放电电流(L-N) Nominal discharge current |
In (L-N) |
5kA 7.5kA l0kA |
@Uoc=10KV ; internal resistance=2Ω(QR-SPD06A-10) @Uoc=15KV ; internal resistance=2Ω(QR-SPD06A-15) @Uoc=20KV ; internal resistance=2Ω(QR-SPD06A-20) |
标称放电电流(L-GND) Nominal dischage current |
In (L-GND) |
5kA 5kA 7.5kA |
@Uoc=10KV ; internal resistance=2Ω(QR-SPD06A-10) @Uoc=10KV ; internal resistance=2Ω(QR-SPD06A-15) @Uoc=15KV ; internal resistance=2Ω(QR-SPD06A-20) |
标称放电电流(N-GND) Nominal discharge current |
In (N-GND) |
5kA 5kA 7.5 |
@Uoc=10KV ; internal resistance=2Ω(QR-SPD06A-10) @Uoc=10KV ; internal resistance=2Ω(QR-SPD06A-15) @Uoc=15KV ; internal resistance=2Ω(QR-SPD06A-20) |
最大电压保护水平(L・N) Max. voltage protection level at In |
Up (L-N) |
l,5kv |
@Uoc=10KV ; internal resistance=2Ω(QR-SPD06A-10) @Uoc=15KV ; internal resistance=2Ω(QR-SPD06A-15) @Uoc=20KV ; internal resistance=2Ω(QR-SPD06A-20) |
最大电压保护水平(L・GND) Max. voltage protection level at In |
Up (L-GND) |
2kV |
@Uoc=10KV ; internal resistance=2Ω(QR-SPD06A-10) @Uoc=10KV ; internal resistance=2Ω(QR-SPD06A-15) @Uoc=15KV ; internal resistance=2Ω(QR-SPD06A-20) |
最大电压保护水平(N-GND) Max. voltage protection level at In |
Up (N-GND) |
2kV |
@Uoc=10KV ; internal resistance=2Ω(QR-SPD06A-10) @Uoc=10KV ; internal resistance=2Ω(QR-SPD06A-15) @Uoc=15KV ; internal resistance=2Ω(QR-SPD06A-20) |
开路电压 Open-circuit witage |
Uoc |
10kV 15kV 20kV |
(L-N)、10kV(L/N-PE)(QR-SPD06A-10) (L-N)、10kV(L/N-PE)(QR-SPD06A-15) (L-N)、15kV(L/N-PE)(QR-SPD06A-20) |
后备保险丝 Backup fuse |
|
16A |
max.gG fuse |
失效指示 End of life indication |
|
yes |
指示灯亮:正常工作/Optical, light ON:SPD Is functional 指示灯灭:产品失效/Light OFF:SPD has reached end-of-life |
最大对地漏电电流 Max earth leakage current at Uc |
|
50μA |
Max. ms,to GND |
寿命 Lifetime |
|
100,000hours |
最大外壳温度下90%产品正常工作 Measured©Tcase-max with min 90% survival |
其它参数 Other specifications
参数规格 Specifications |
参数值 Value |
产品型号 Model |
测试环境 Condition |
|
1 strikes |
QR-SPD06A-10 QR-SPD06A-15 QR-SPD06A-20 |
max. at 10KA max. at 15KA (L-N) , max. at 10KA (LN-PE) max. at 20KA (L-N) , max. at 15KA (LN-PE) |
|
20 strikes |
QR-SPD06A-15 QR-SPD06A-20 |
min.at7.5KA (L-N) min. at 10KA [L-N) |
抗冲击能力 Surge withstand capability |
30 strikes |
QR-SPD06A-10 QR-SPD06A-15 QR-SPD06A-20 |
min. at 5 KA min. at 5KA (L/N-PE) min.at7.5KA (L/N-PE) |
|
50 strikes |
QR-SPD06A-10 QR-SPD06A-15 QR-SPD06A-20 |
min. at 3KA (L-N、L/N-PE) min. at 3KA L-N、L/N-PE min.at5KA (L-N. L/N-PE) |
额定电流 Nominal current |
4A |
|
额定负载电流(50-60HZ) Rated load current at 50... 60Hz |
消耗功率 Pcwer consumption |
0.5W |
|
max. at Uc=275VAC; Load current=4A |
适用灯具 Suitable for luminaires |
Class I |
|
绝缘等级按照IEC60598 Insulation Class acc. IEC60598 |
电压保护水平Protection levels up
产品型号 Model |
冲击电流 IC 8/20ps |
差模U2 Differential mode U2 |
冲击电流 IC 8/20ps |
共模U1/U2 Common mode U1/U2 |
QR-SPD06A-10 |
5KA |
<1500V |
5KA |
<2000V / 1000V |
QR-SPD06A-15 |
7.5KA |
<1500V |
5KA |
<2000V / 1000V |
QR-SPD06A-20 |
10KA |
<1500V |
7.5KA |
<2000V / 1000V |
使用和储藏环境 Environmental conditions
參数规格 Specifications |
参数值 Value |
测试环境 Condition |
环境温度 Ambient temperature |
-40...70°C |
|
外壳表面温度Tease-max |
|
在温度测量点测量Measured at Tc-point |
储藏环境温度Storage temperature |
-40...857 |
|
相对湿度 Relative humidity |
5 …95% |
不结露 Non-condensing |
室外灯适用 Suitable for outdoor luminaires |
yes |
室外需加防护 Outdoor with additonal protection |
数据表 | 大小 | 日期 | 操作 |
QR-SPD06A-IP20.pdf | 1.11MB | 2020-03-24 | 下载 |
